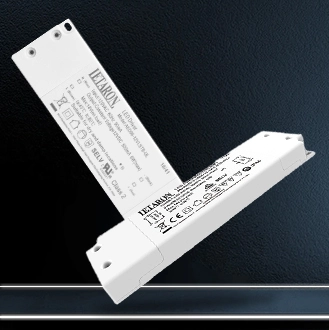

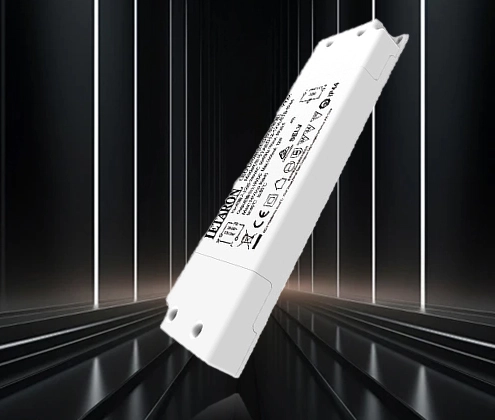

Our specially designed LED driver can be as thin as half an inch, which is 13.5mm. Super fit for bathroom mirror, wall mirrors.
| Type | LED Driver for Mirror Lighting | ||||||||
| Name | 13.5mm Thickness Led Driver | ||||||||
| Rated power | 6W、12W、15W | ||||||||
| Output voltage | 12VDC、24VDC | ||||||||
| Output current | 80mA、160mA | ||||||||
| Input voltage | 220-240VAC | ||||||||
| Input frequency | 50/60Hz | ||||||||
| Efficiency | ≥78%、≥82%、≥83% | ||||||||
| Dimension(mm) | 145x41x13.5、171x54x16、220 x55x16.5、238x55x16.5、310x70x16.5 | ||||||||
Ultra-thin design, suitable for relatively small spaces
Using flame-retardant materials and ultrasonic welding technology, it has good anti-interference performance, small DC ripple, higher work efficiency, and more reliable in use.
Ultra thin design, fine workmanship, multiple power options, IP44 waterproof grade, using flame-retardant materials, and ultrasonic welding process, with good anti-interference performance and small DC ripple.
After full load high-temperature burning/aging testing, it has a long service life, good insulation, high electrical strength, and quality assurance; Multiple security testing and certification, ensuring safe and stable use.
Customizable requirements can be made based on product functions, such as tricolor lighting, stepless dimming, intelligent defogging control, and other functions, OEM/ODM are welcome.
Just like our IP44 LED driver, this 13.5mm Thickness LED Driver is suitable for bathroom mirrors, makeup mirrors, mirror cabinets, cabinets, wardrobes, wine cabinets, etc., suitable for a variety of scenarios, meeting various lighting needs.
The power of a driver can only be larger, not smaller than that of a light. There should be some buffer in use, because the wiring connection causes power losses. Generally, no more than 80% of the rated power consumption is the best.
We are a professional manufacturer, located in the industrial area of Thailand, close to sea port (1 hour drive), close to airport (30 minutes drive).
Always a pre-production sample before mass production, triple aging test before enter warehouse. All the led driver come with3 years warranty.
